Thermoelectric Cooled HgCdTe (MCT) Infrared Detectors

We offer high quality thermoelectric cooled photoconductive HgCdTe (MCT) infrared detectors. They offer high performance, with ease of operation. Standard detectors are optimized in the 2µm to 5µm wavelength. Extended range detectors operate in the wavelength region beyond 5µm.

Optically Enhanced detectors are available with both reflective and refractive optical elements to improve the collection efficiency of these devices. The apparent enhanced responsivity and D*, of theses detectors, relies on the ability of the optical components to refocus energy, which might not normally be incident, on the detector element.

These thermoelectric cooled HgCdTe (MCT) infrared detectors are most suitable for applications in which the energy incident is either collimated or diverging. The optically enhanced detectors are, therefore, ideally suited for applications in which fiber optics are employed.

image 42

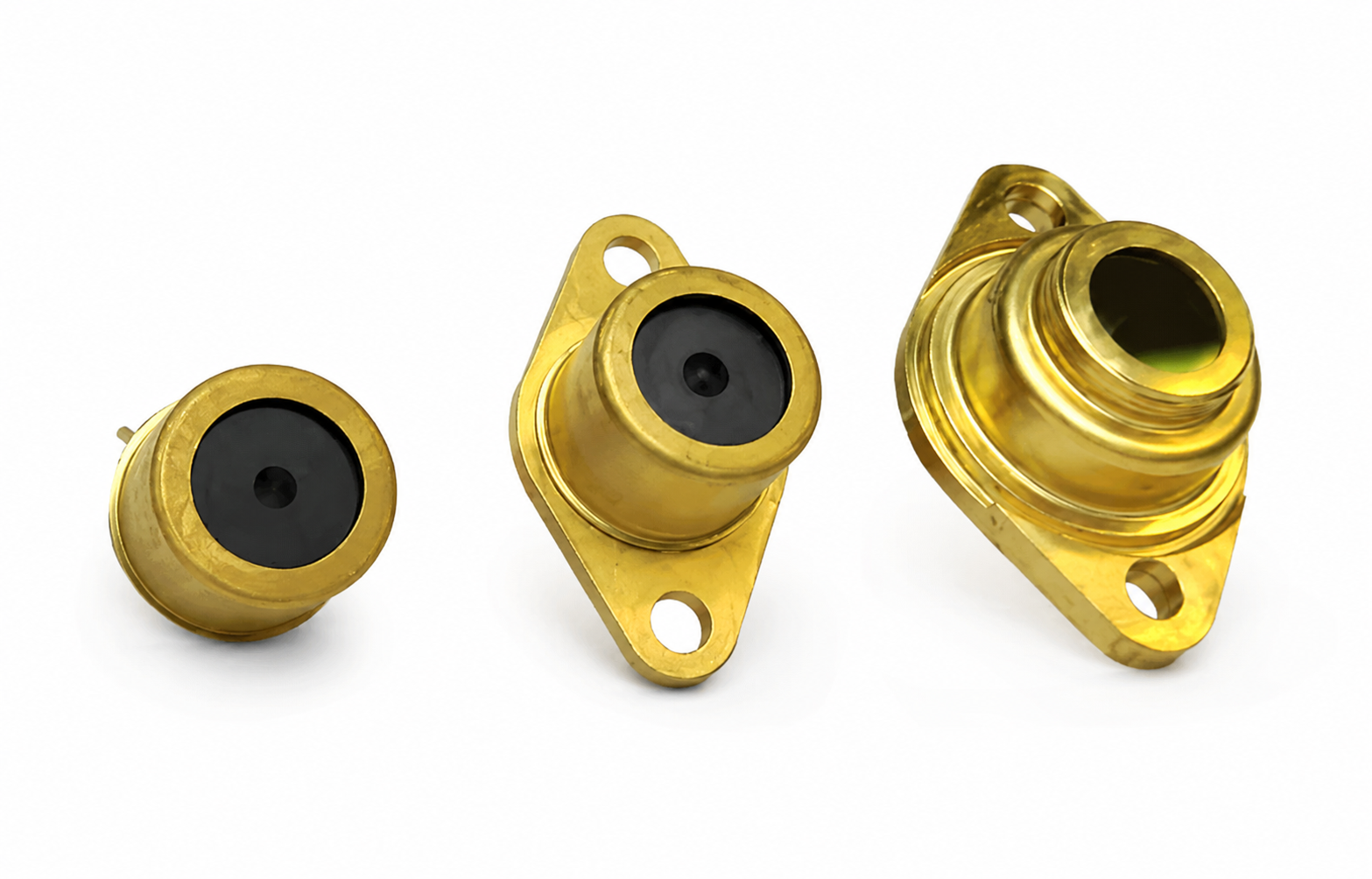

The detectors are mounted on two-stage, three-stage, or four-stage coolers in TO style packages as shown in the tables below. A calibrated thermistor is included in the package for accurate temperature monitoring and/or  temperature control. Soldered windows and welded caps are used to hermetically seal the packages. The packages are backfilled with inert gas for more efficient cooler operation.

They can be supplied with the following accessories: preamplifiers, power supplies, heat sinks and temperature controllers.

Other wavelengths cutoffs are available on a limited basis, contact us with your specific requirements.

Standard TE Cooled HgCdTe Detectors

MCT detectors — 2 µm to 5 µm
Model Number Element
Size (mm)
Wave-
length
Peak λp
(µm)
Wavelength
Response
(20% λco)
(µm)
D* (λp,10000,1)
Jones
Resistance

(Ω)
Time
Constant

(µsec)
Oper.
Temp. *

°C
Std. Pkg. Std.
Window
2 µm to 5 µm
MCT-3.5-TE2-0.250.25 × 0.25~3.0≥ 3.5≥ 1.0E11100–1500≤ 2-402-Stage
TO-3 TO-8
TO-66
Sapphire
MCT-3.5-TE2-1.001.00 × 1.00
MCT-4.5-TE2-0.250.25 × 0.25~4.0≥ 4.5≥ 4.0E10
MCT-4.5-TE2-1.001.00 × 1.00
MCT-5-TE2-0.100.10 × 0.10~4.5≥ 5.0≥ 2.0E10100–1500
MCT-5-TE2-0.250.25 × 0.25
MCT-5-TE2-0.500.50 × 0.50
MCT-5-TE2-1.001.00 × 1.00
MCT-5-TE2-2.002.00 × 2.00≥ 1.0E10
MCT-4.5-TE3-0.250.25 × 0.25~4.0≥ 4.5≥ 6.0E10100–1500-653-Stage
TO-3 TO-8
TO-66
MCT-4.5-TE3-1.001.00 × 1.00
MCT-5-TE3-0.100.10 × 0.10~4.5≥ 5.0≥ 4.0E10100–1500
MCT-5-TE3-0.250.25 × 0.25
MCT-5-TE3-0.500.50 × 0.50
MCT-5-TE3-1.001.00 × 1.00
MCT-5-TE3-2.002.00 × 2.00≥ 3.0E10
MCT-5-TE4-0.100.10 × 0.10≥ 6.0E10-754-Stage
TO-3 TO-66
MCT-5-TE4-0.250.25 × 0.25
MCT-5-TE4-0.500.50 × 0.50
MCT-5-TE4-1.001.00 × 1.00
MCT-5-TE4-2.002.00 × 2.00≥ 4.0E10
* Note: Heat Sink @ 30 Degrees Celsius

* Note: Heat Sink @ 30 Degrees Celsius

Extended Range TE Cooled HgCdTe Detectors

Model Number Element Size (mm) Wave-length Peak λp (µm) Wavelength Response (20% λco) (µm) D* (λp,10000,1) Jones Resistance (Ω) Time Constant (µsec) Oper. Temp. * °C Std. Pkg. Std. Window
> 5 µm
MCT-6-TE3-0.25
MCT-6-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~5.5 ≥ 6.0 ≥ 2.0E10 100–1500 ≤ 2 -65 3-Stage
TO-3 TO-66
AR Coated ZnSe
MCT-6-TE4-0.25
MCT-6-TE4-1.00
0.25 × 0.25
1.00 × 1.00
≥ 3.0E10 -75 4-Stage
TO-3 TO-66
MCT-7-TE3-0.25
MCT-7-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~6.0 ≥ 7.0 ≥ 1.0E10 -65 3-Stage
TO-3 TO-66
MCT-7-TE4-0.25
MCT-7-TE4-1.00
0.25 × 0.25
1.00 × 1.00
≥ 1.5E10 -75 4-Stage
TO-3 TO-66
MCT-8-TE3-0.25
MCT-8-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~7.0 ≥ 8.0 ≥ 3.0E9 -65 3-Stage
TO-3 TO-66
MCT-8-TE4-0.25
MCT-8-TE4-1.00
0.25 × 0.25
1.00 × 1.00
≥ 6.0E9 -75 4-Stage
TO-3 TO-66
MCT-9-TE3-0.25
MCT-9-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~8.0 ≥ 9.0 ≥ 1.5E9 -65 3-Stage
TO-3 TO-66
MCT-9-TE4-0.25
MCT-9-TE4-1.00
0.25 × 0.25
1.00 × 1.00
≥ 2.0E9 -75 4-Stage
TO-3 TO-66

* Note: Heat Sink @ 30 Degrees Celsius

Optically Enhanced TE Cooled HgCdTe Detectors

Model Number Element Size (mm) Wave-length Peak λp (µm) Wavelength Response (20% λco) (µm) D* (λp,10000,1) Jones Resistance (Ω) Time Constant (µsec) Oper. Temp. * °C Std. Pkg. Std. Window
> 5 µm
OE-MCT-6-TE3-0.25
OE-MCT-6-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~5.5 ≥ 6.0 ≥ 8.0E10 100–1500 ≤ 2 -55 3-Stage
TO-3 TO-66
AR Coated ZnSe
OE-MCT-7.5-TE3-0.25
OE-MCT-7.5-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~6.5 ≥ 7.5 ≥ 2.0E10
OE-MCT-8-TE3-0.25
OE-MCT-8-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~7.0 ≥ 8.0 ≥ 8.0E9
OE-MCT-9-TE3-0.25
OE-MCT-9-TE3-1.00
0.25 × 0.25
1.00 × 1.00
~8.0 ≥ 9.0 ≥ 4.0E9

* Note: Heat Sink @ 30 Degrees Celsius

Typical Applications:
(2µm-9µm)

• Thermal Imaging
• Laser Detection
• Gas Analysis
• Railroad Hot Boxes
• Line Scanner
