Stirling Cooled Detectors

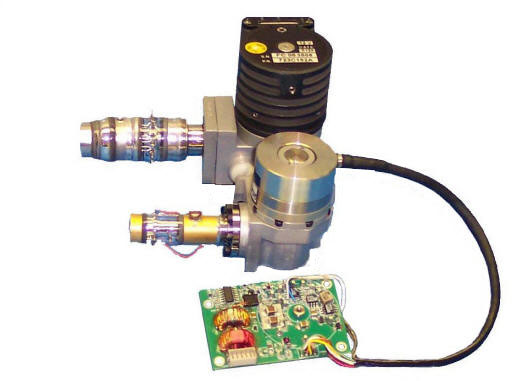

InfraRed Associates, Inc. offers an additional cooling option for our Infrared Detectors.  Stirling Cycle Cooled Detectors are offered in three different design packages allowing operation down to 75K, when required.  This option eliminates the need for Liquid Nitrogen cooling and is ideal for remote or unattended operation.



K508 Integral Stirling Micro IDDCA

K561 Integral Stirling Low Power Micro IDCA

K549 Split Stirling Cryocooler

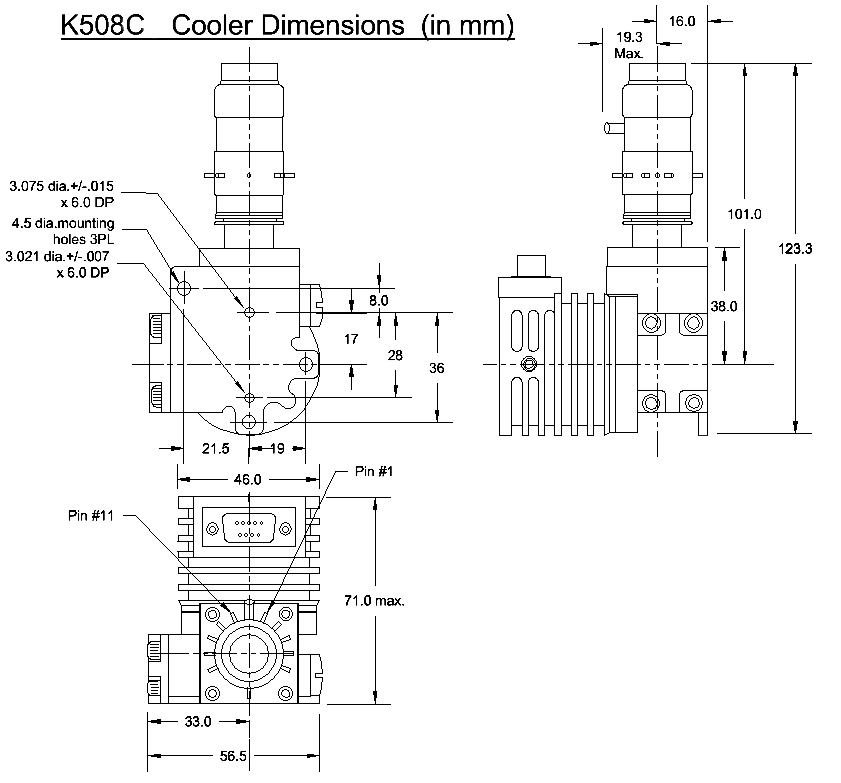

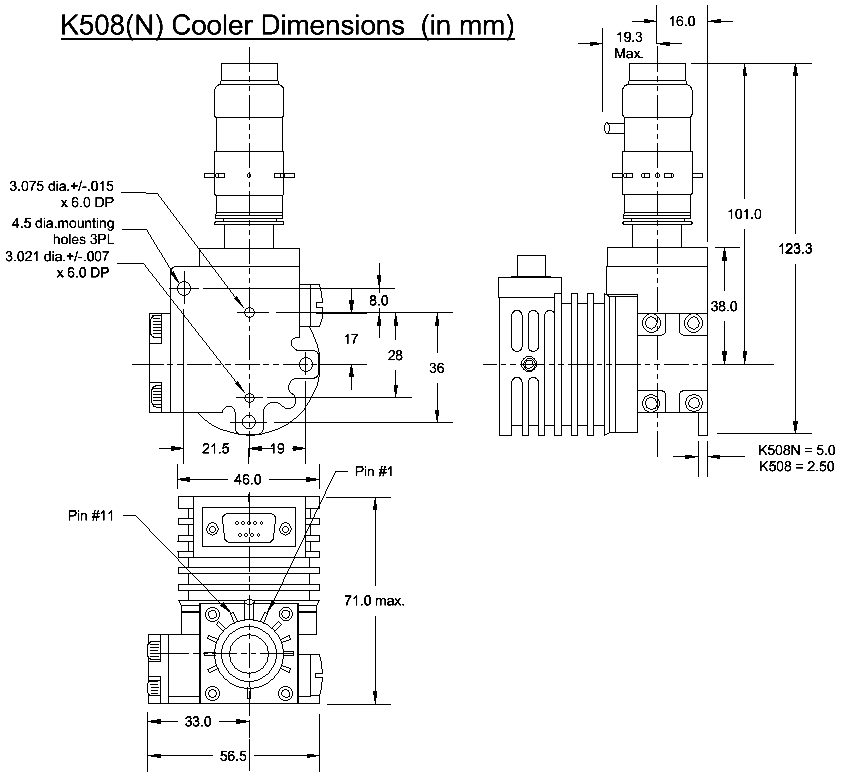

K508 Integral Stirling Micro IDDCA: The K508 Microcooler design model is solidly based on the concepts of direct detector mounting on the cooler's cold finger, and integral construction of cooler and dewar envelope. Operation of the integral Stirling microcooler, driven by a DC brushless motor, is clean, silent and highly reliable. Model K508 has been in service since 1994. This cooler is extensively used in many commercial instruments. The Micro IDCA model K508 contains an onboard temperature controller, which offers standby, remote shutdown and over-temperature /over-current protection options. By adopting various types of dewar envelopes, this microcooler can meet the cooling demands of most advanced IR detectors.

K508 SPECIFICATIONS

Cooler Weight: 450 gr. Click on image to enlarge
Input Voltage: 12-16 VDC
Steady State Input Power (220mW @77K @23°C): 7W Typ.
Maximum Input Power: 17W
Ambient Temperature Range:
Operational: -40°C...+85°C
Non-Operational: -56°C...+85°C
Cooldown Time (250J @23°C): 5 Min. Typ.
MTTF > 8,000 Hours (Expected)
Meets Environmental Conditions per MIL-STD-810D



K561 Integral Stirling Low Power Micro IDCA: This model was specially developed in order to meet hand-held thermal imagers applications requirements, where compactness, low input power and cooler lightweight are most important parameters.

K561 SPECIFICATIONS

Cooler Weight: 270 gr. Click on image to enlarge
Input Voltage: 12 VDC
Steady State Input Power(170mW @80K @23°C): 4.5W Typ.
Maximum Input Power: 14W
Ambient Temperature Range: -40°C...+71°C
Cooldown Time (190J @23°C): 5 Minutes Typ.
MTTF > 5,000 Hours
Meets Environmental Conditions per MIL-STD-810D

K549 Split Stirling Cryocooler: This cooler combines the famous reliability and rigidity of our microcooler family with the split configuration for compactness and better control of heat rejection and vibrations. Cold finger/dewar assembly identical and interchangeable with model K508. Built-in electronic module contains closed loop temperature controller and various options for motor stator configuration motor voltage and accessories.

K549 SPECIFICATIONS

Cooler Weight: 770 gr.

Click on image to enlarge

Input Voltage: 12-16 VDC
Steady State Input Power (220mW @77K @23°C): 9W Typ.
Maximum Input Power: 32W
Ambient Temperature Range:
Operational: -40°C...+71°C
Non-Operational: -56°C...+85°C
Cooldown Time (150J @23°C): 2:15 Minutes Typ.
MTTF > 4,000 Hours
Meets Environmental Conditions per MIL-STD-810D
